Octagonal 10kV-220kV Certificated Electric Power Steel pole with Galvanization
Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.
Specifications:
| Electric Pole Specification In Congo |
| 11.8M | 5 | 150 | 355 | 3 | 8 | 9.4 | Gr65 |
| 11.8M | 6.5 | 180 | 400 | 3 | 8 | 9.4 | Gr65 |
| 11.8M | 8 | 190 | 440 | 3 | 8 | 9.4 | Gr65 |
| 11.8M | 10 | 190 | 450 | 3.5 | 8 | 9.4 | Gr65 |
| 11.8M | 12.5 | 220 | 500 | 3.5 | 8 | 9.4 | Gr65 |
| 11.8M | 16 | 230 | 560 | 3.5 | 8 | 9.4 | Gr65 |
| 11.8M | 20 | 240 | 585 | 4 | 8 | 9.4 | Gr65 |
| 11.8M | 25 | 260 | 655 | 4 | 8 | 9.4 | Gr65 |
| 11.8M | 32 | 260 | 660 | 5 | 8 | 9.4 | Gr65 |

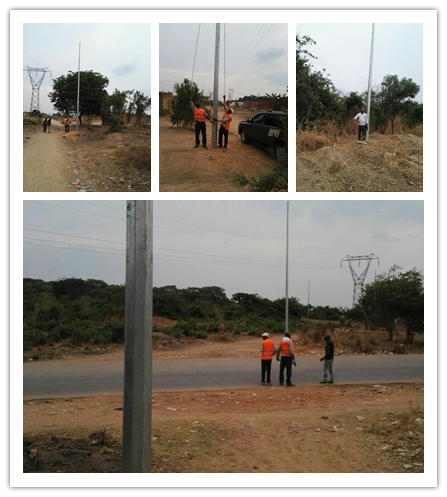

Installation
-Remove all the equipment on the pole during Assembly.
-Circle a sling around th epole shaft of each section.
-Fix the sling on top section to one pulley block.
-The sling on the bottom section is tightly fixed and fixed at the center of gravity.
-Make the steel pole vertical by tighten the sling of the top section.
-Fix the steel pole.
-Remove the sling.
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
| Overseas Project For Electric Pole |
| Country | Utility Name | Voltage Level | Type | Year of supply |
| Philippines | NEA,NGCP | 69KV | 25FT-100FT,According to customer requirement | Every Month |
| Costa Rica | Electric Pole | | 10M,11M | Every Month |
| Congo | Electric Pole | | 8M,10M | Every Month |
| Ghana | Ghana Elercity Company | | 11m,12m | 2016 |
| Ghana | Ghana Elercity Company | | 10m,11m | 2015 |
| Pakistan | Wapda | 132kv | SPA,SPD,SPG | 2013 |
| Saudi Arabic | Saudi Electricity Company | | 10m electric pole | 2011 |
| Ecuador | Celec | 138kv | PP-B40 | 2009 |
| More project,please visit our website or contact with our sales to get more information. |
