African Bitumen 35M Double Circuit Galvanized Steel Power Pole 10 KV - 550 KV

Name: African Bitumen 35M Double Circuit Galvanized Steel Power Pole 10 KV 550 KV
Brand: MilkyWay
Price: 1 USD

Brand Name : MilkyWay

Model Number : Galvanized Steel Power Pole

Certification : ISO9001/BV/

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : T/T, L/C at sight

Supply Ability : 300pcs per day

Delivery Time : 20 working days after received your payment

Packaging Details : As customer request

Product Name : Galvanized Steel Power Pole

Application : Power Line

Thickness : 1 mm to 36mm

Tolerance of the dimension : +-2%

Life time : 50 years

Welding Standard : AWS (American Welding Society ) D 1.1

Material : Q345

Contact Now

African Bitumen 35 M Double Circuit Galvanized Steel Power Pole 10 KV - 550 KV Transmission Line

Specifications:

Suit for	Electricity distribution
Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-
Torlance of the dimenstion	+- 2%
Power	10 KV ~550 KV
Safety Factor	Safety factor for conducting wine : 8 Safety factor for grounding wine : 8
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Marks	Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required
Joint of Poles	Insert mode,innerflange mode,face to face joint mode
Design of pole	Against earthquake of 8 grade
Wind Speed	160 Km/Hour . 30 m /s
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness	1 mm to 30 mm
Packages	Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data

Description:
Standard Accessory
-Top plate
-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder
These are the standard accessories of the electric pole.

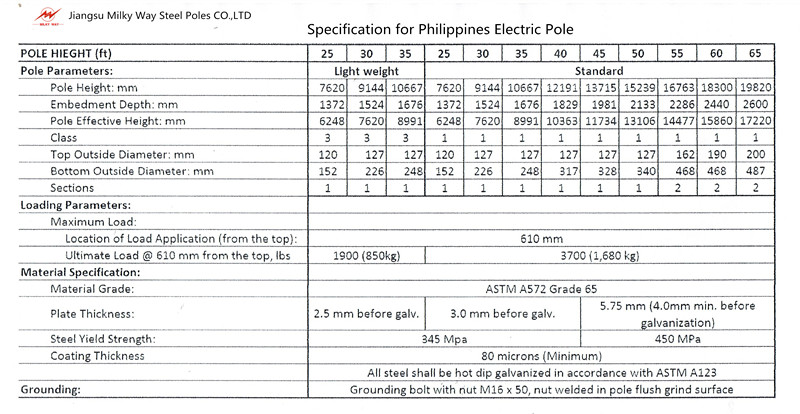

Specification for Asian Philippines Electric Power Transmission Line Pole

African Bitumen 35M Double Circuit Galvanized Steel Power Pole 10 KV - 550 KV

Galvanization

The galvanization of the steel pole are under strict control.Galvanization is achieved by immersion in a molten zinc bath(450d°) after pre-treated(dipping).

Installation
-Remove all the equipment on the pole during Assembly.
-Circle a sling around th epole shaft of each section.
-Fix the sling on top section to one pulley block.
-The sling on the bottom section is tightly fixed and fixed at the center of gravity.
-Make the steel pole vertical by tighten the sling of the top section.
-Fix the steel pole.
-Remove the sling.

African Bitumen 35M Double Circuit Galvanized Steel Power Pole 10 KV - 550 KV

Package

Packing with plastic paper or according to client’s request.

African Bitumen 35M Double Circuit Galvanized Steel Power Pole 10 KV - 550 KV
