12m 13m 17m 19m Steel Power Pole Burial Type For Electric

Brand Name : milky way

Model Number : steel pole

Certification : ISO9001:2015

Place of Origin : Jiangsu

MOQ : 500pieces

Price : USD 1-500/poles

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1000per month

Delivery Time : always 2 weeks

Packaging Details : Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pics will calculation base on the client actually specification and data.

Material : Q235 Q345 GR65 SS400

Wind speed : 35m/s

origin of place : Yixing

Type : Burial

surface treament : hot dip galvanization

galvanization standard : ASTM A123

welding : AWS D1.1

Warrenty : 30 years

Lifetime : 50 years

Contact Now

Specification:

Material: Hot rolled steel, Q235,Q345,S235,S355,SS400,Gr 50
Pole’s height 3m –15m
length Within 16m once forming without slip joint
Wall thickness 2.3mm-30mm
Pole's Shape: Round, Polygonal, Octagonal, Taper round, Round conical, Square
Arm type: Single arm, Double arm, Tri-arm, Four-arm
Application: Outdoor illumination, Road illumination, Street illumination
welding

It has past flaw testing, internal and external double welding makes the

welding beautiful in shape. It confirms with the international welding

standard of CWB.
Galvanizing

Hot dip galvanization with thickness of 80-100µm average

in accordance with Chinese standardGB/T 13912-2002 or

American standard ASTM A123, IS: 2626-1985.
Painting color: Refer to client’s requirement and then according to (RAL)Color card
Finishing 1: Black pole, Rough pole
Finishing 2: Hot dip Galvanizing antirust.
Finishing 3: HDG. with powder coating
Temperature range -35 °C~+45 °C
Max wind velocity Aganist wind pressure of 160Km/h
Base plate mounted

Base plate is square, octagonal or round in shape with

slotted holes for anchor bolt and dimension as per customer’s requirement.
Ground mounted The length buried underground as per customer’s requirement.
Quality Control

We are well equipped with superior production equipments,

solid technical strength, excellent managing mode and quality control system,

perfect after service. We have passed the ISO9001:2008 Quality

Systems Authentication.
Certificates ISO9001-2008, Audited Supplier, The AAA grade certificate of goodwill
Other Less land occupation & easy maintenance.

Production Flow:
The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

12m 13m 17m 19m Steel Power Pole Burial Type For Electric

The information to inquiry or purchase
-Steel pole height
-Dimension of the flange
-Position and dimension of the service door
-Cross arm type and length,the position to install in the steel pole
-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)
-Wind speed
-Destination port
-Other.

12m 13m 17m 19m Steel Power Pole Burial Type For Electric

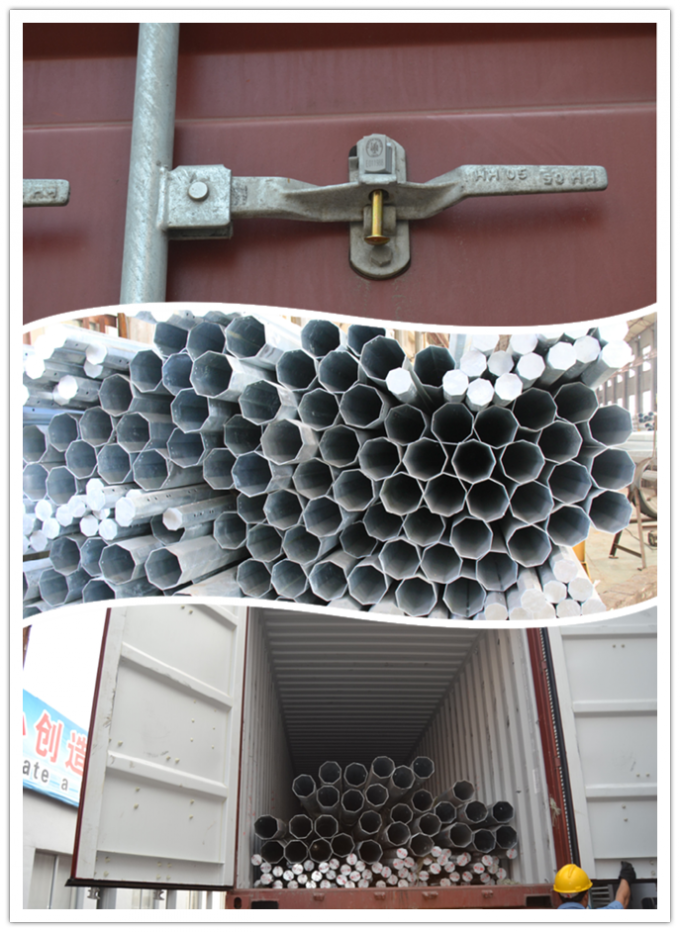

Standard Accessory
-Top plate
-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder

12m 13m 17m 19m Steel Power Pole Burial Type For Electric
