Philippine NEA 69KV Electric Steel Tubular Pole With Galvanization Anticorrosive

Name: Philippine NEA 69KV Electric Steel Tubular Pole With Galvanization Anticorrosive
Brand: MilkyWay
Price: 1 USD

Philippine NEA 69KV Electric Steel Tubular Pole With Galvanization Anticorrosive Manufactures

Brand Name : MilkyWay

Model Number : Steel Tubular Pole

Certification : ISO9001 / BV /

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : T/T, L/C at sight

Supply Ability : 300pcs per day

Delivery Time : 20 working days after received your payment

Packaging Details : As customer request

Product Name : Electric Steel Tubular Pole

Power : 10 KV ~550 KV

Flange size : 450mm

Wall thickness : 3mm

Warranty : 15 years

Contact Now

Philippine NEA 69KV Electric Steel Tubular Pole with Galvanization

Descripition of material:
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel

Welding
We have past flaw testing. Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Production Process
Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages
Philippine NEA 69KV Electric Steel Tubular Pole With Galvanization Anticorrosive

Description:
Standard Accessory
-Top plate
-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder
These are the standard accessories of the electric pole.

Specification:

Types Length	45ft	50ft	55ft	60ft	65ft	70ft
Types Length	13.75m	15.25m	16.80m	18.30m	19.85m	21.35m
B ( 0°-2°)
Top diameter (mm)	200	200	200	200	200	200
Butt diameter (mm)	345	370	395	415	435	455
Thickness (mm)	6	6	6	6	6	6
E ( 2°-15°)
Top diameter (mm)	200	200	200	200	200	200
Butt diameter (mm)	545	585	625	660	700	740
Thickness (mm)	6	6	6	6	6	6
C ( 15°-30°)
Top diameter (mm)	250	250	250	250	250	250
Butt diameter (mm)	600	645	690	730	770	805
Thickness (mm)	6	6	6	6	6	6
D ( 30°-90°)
Top diameter (mm)	300	300	300	300	300	300
Butt diameter (mm)	680	730	725	765	755	790
Thickness (mm)	6	6	7	7	8	8
HS ( 0°-2°)
Top diameter (mm)	200	200	200	200	200	200
Butt diameter (mm)	340	360	385	400	420	440
Thickness (mm)	6	6	6	6	6	6
HT ( 2°-15°)
Top diameter (mm)	200	200	200	200	200	200
Butt diameter (mm)	485	520	550	580	615	645
Thickness (mm)	6	6	6	6	6	6
3T ( 15°-30°)
Top diameter (mm)	250	250	250	250	250	250
Butt diameter (mm)	520	540	565	595	615	640
Thickness (mm)	6	6	6	6	6	6
3D ( 30°-90°)
Top diameter (mm)	300	300	300	300	300	300
Butt diameter (mm)	585	620	650	680	715	765
Thickness (mm)	6	6	6	6	6	6

Product Tags:

floodlight pole

commercial light poles

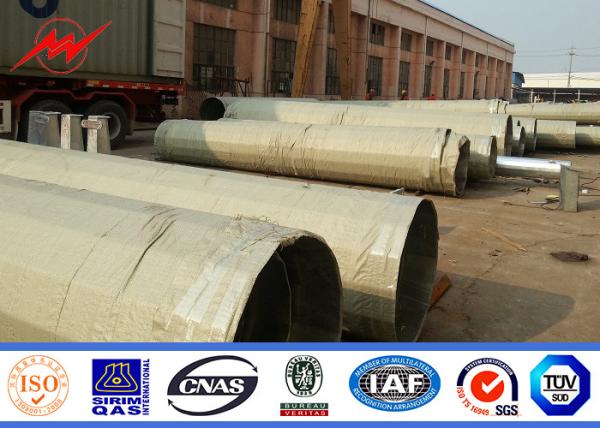

Philippine NEA 69KV Electric Steel Tubular Pole With Galvanization Anticorrosive Images
