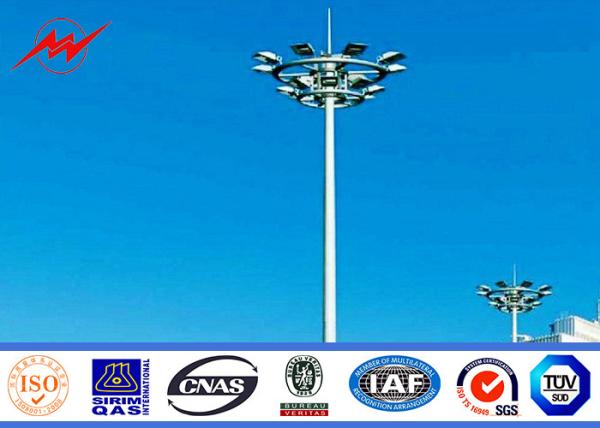

Anticorrosive Round 25M HDG Plaza High Mast Pole with Round Lamp Panel

Mast’s height

15m to 35m

Shape of mast

Polygon

Shafts are made of steel sheet that folded into required shape and

welded longitudinally by automaticarc welding machine

Head frame

The style according to client's requests and dimension as per

customers requirement

Length

Within 14m once forming without slip joint

Wall thickness

4mm to 20mm

Welding

It has past flaw testing.Internal and external double welding makes

the welding beautiful in shape.

And confirms with international welding standard of CWB

Jointing

Slip Joint

Jointing of pole with insert mode, innerflange mode, face to face joint mode.

Base plate mounted

Base plate is square or round in shape with slotted holes for

anchor bolt and dimension as per customers requirement.

Ground mounted

The length buried underground as per customers requirement.

Galvanizing

Hot dip galvanization with thickness of 80-100µm average

in accordance with Chinese standardGB/T 13912-2002 or American

standard ASTM A123, IS: 2626-1985.

Powder coating

Pure polyester powder painting, color is optional according to

RAL Color stardand.

Wind Resistance

Aganist wind pressure of 160Km/h

Manufacturing

According to GB/T 1591-1994.

Quality Control

We control the quality according to the flow of ISO9001-2008.

Quality is employed at every stage of production to

ensure the product compliance to the specifications/standards.

Careful inspections are carried out by highly trained inspection

engineers as per the defined procedures from raw material stage

to finished product and delivery. Prototype assembly of towers is carried out in

the plant.

Certificates

ISO9001-2008 Audited Supplier
