Conical 36m Square light High Mast Pole with auto rasing system for power plants lighting
Quick Information
Sourced from trusted vendors of market, the offered High Mast Poles are made available in several specifications as per the requirements of our clients. These poles are highly demanded in various construction sites, highways, road intersections and play grounds for providing multi-directional light with equal intensity.
Consists of the following major parts:
Head Frame
Luminaries Ring
Winch
Portable power tool or electrical motor.
Quick Product Description-High Mast Lighting Pole
| Item | 36 MTR |
| Material Construction | Q345(Gr50) |
| No. of Longitudinal Welds | Single |
| Cross section of mast in polygon((No. of Sides) | Octagonal,dodecagon,hexadecagon |
| Thickness | Octagonal,dodecagon,hexadecagon |
| Individual Section’s Length | 4mm,6mm,8mm,10mm or customized design |
| Base & Top dia (OAF) | 8300mm |
| Thickness of galvanization(Average) | 422/200mm |
| Size of opening door at base | 360 x 1400 mm |
| Size of base plate diameter | 625 mm |
| Size of base plate thickness | 32 mm |
| Number of foundation bolts | 8 |
| Bolt diameter | 28 mm |
Design
Lamp Type:
Technical Specification
20 sided polygonal continuosly tapered cross section
Headframe at the top shaft will be tilted 10 degrees for floodlights aiming
Fixed platform and service ladder at the top of the shaft for maintenance purpose
Maintenance Cage lifts by hoist unit complete with safety brake to reach the fixed platform
ACCESSORIES
Mast with continuous tapered polygonal cross section have high load bearing strength oscillation due to wind speed and related stress are fully taken care in the design.
IMPORTANT TECHNICAL FEATURES
FIXED TYPE HEAD FRAME :
Designed with larger Dia. Non corrosive aluminum pulley system for longer life and perfect balancing.
WINCHES :
Winch designed with gear ration 53:1 and without break of clutches. These are self lubricated for sustained trouble free life.
FINISH :
The complete mast with component is fully hot dip galvanized for longer life.
LANTERN CARRIAGE :
We specialize in custom built design, standard lighting design and various types and shapes. The lantern carriage is supported with three numbers flexible 6 sq. mm. S.S. wire ropes from the distributors that can be elevated/lowered electrically and mechanically.
OPTIONAL :
The most can be supplied with timer / photo sensor panel for auto control.
Options:
• The High Mast is available in various length, diameters and hole arrangements.
• Multisided or Tapered round variations.
• The High Mast is available in base plate mounted or direct bury installed.
• All High Masts are hot dip galvanized according to EN 1461, and can be powder coated or painted.
• Additional service doors.
• Pre-drilling for removable safety steps is available.
Application:
Stadium
Sports centre
PORTS
PARKS
AIRPORTS
HIGHWAYS
TRUCK STOPS
PRISON YARDS
POWER PLANTS
RAILROAD YARDS
ATHLETIC FIELDS
SPORTS COMPLEXES
SHOPPING CENTERS
AUTO DEALERSHIPS
WATER TREATMENT PLANTS
COMMERCIAL PARKING LOTS
Company Introduction
Established in the year 1991, we “Jiangsu Milky Way” are based in Jiangsu, China.
We are the one of the leading manufacturers and suppliers of a wide range of electric equipments like:
lighting fixtures, poles, luminaries & other accessories that include: High Mast Poles, Octagonal Poles, Decorative Poles, Swaged Poles & Bracket Design, Commercial & Decorative Luminaries, CFL Luminaries, Industrial Highway Luminaries, Street Light Luminaries, Post Top Luminaries, Flood Light Luminaries, Bulkhead Luminaries, Plant Light Luminaries, Accessories.
The entire range of equipment is manufactured using superior quality raw material and ensures reliability.
These products are extensively used in Offices, Schools & Colleges, Residential Complexes, Resorts, Hotels, Industries, Highways, Petrol Pumps, Yard Lighting & Stadiums.
Product Tags:
|
|

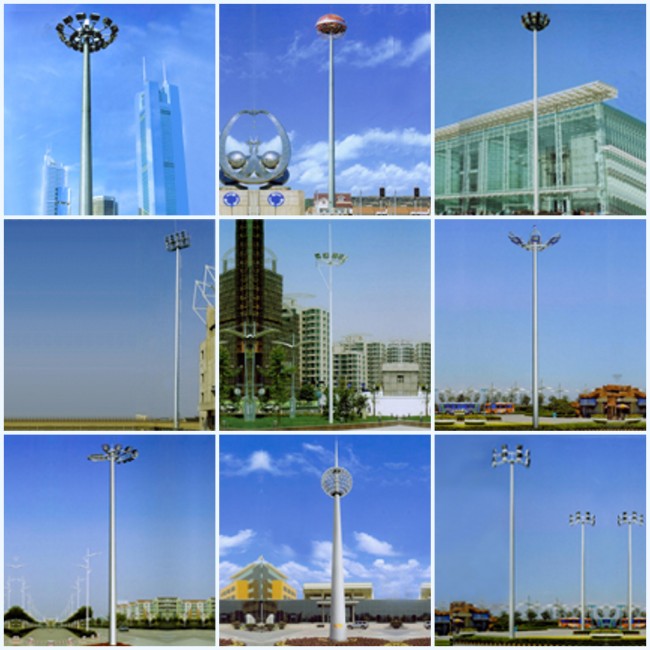

Power Plants Lighting Conical 36m Square Light High Mast Pole With Auto Racing System Images
|
