110KV multisided electrical power pole for over headline project

Brand Name : MilkyWay

Model Number : Electric Power Pole

Certification : ISO9001/BV/

Place of Origin : China

MOQ : 1 Poles

Price : Negotation

Payment Terms : L/C, T/T

Supply Ability : 300pcs per day

Delivery Time : 20 working days after received your payment

Packaging Details : As customer request

Product Name : Multisided electrical power pole

Application : Power Transmission

Standard : ISO

Welding standard : AWS D 1.1

Galvanization Standard : ASTM A 123

Voltage : 10kv To 550kv

Contact Now

33kv transmission line electrical power pole steel pole tower


Specifications:

Suit for

Power Transmission

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Tolerance of dimension

+- 2%

Power

10 KV ~550 KV

Safety Factor

Safety factor for conducting wine : 8
Safety factor for grounding wine : 8

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We have past flaw testing. Internal and external double welding makes
the welding beautiful inshape Welding Standard :AWS ( American
Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Raw material test → Cutting →Molding or bending →Welding
(longitudinal )→Dimension verify →Flange welding →Hole drilling
→Calibration→ Deburr →Galvanization or powder coating ,painting
→Recalibration →Thread →Packages

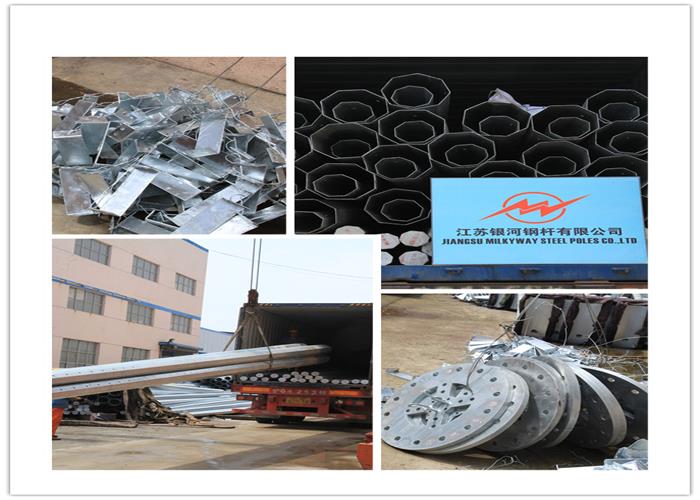

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required ,each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data.


Description:

Standard Accessory

-Top plate

-Base plate

-Bottom strip

-Standard hole

-Climbing rung

-Anchor bolt

-Bitumen protection

-Painted marking

-Removable ladder

These are the standard accessories of the electric pole.


110KV multisided electrical power pole for over headline project

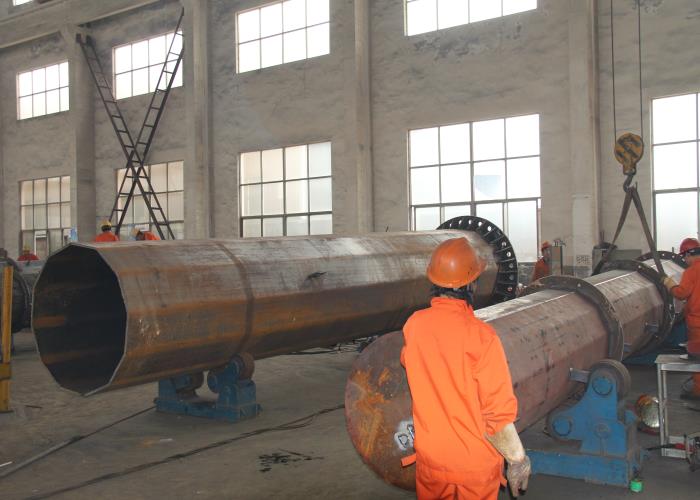

Production process:
As an BV, ISO, approved supplier in China, we have more than 20 years produce and export
steel pole ,and we can assure the pole we offered is of sound quality which made from qualified material
with our professional workers and advance equipment.

110KV multisided electrical power pole for over headline project

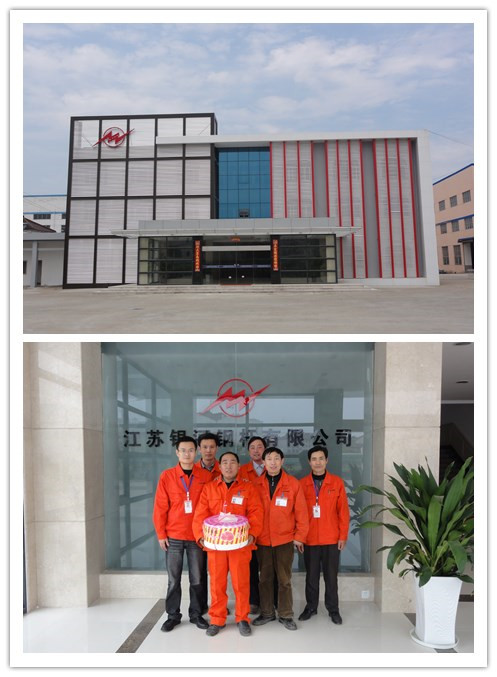

Company Introduction:
Jiangsu Milky Way Steel Poles Co.,Ltd (Original name:Yi xing Milky Way Steel Poles Factory) was
founded in 1991 is a cooperative shares system corp. The company covers an area of 150,000 square
meter .It is now centralizing in pole design, ,research, production ,and installation. After twenty years of
development,the company owns Hot Spray Coating Zinc Branch Factory ,Anhui Steel Branch ,Milky Way
Lighting Installation Engineering Company. The total asset of the company amount to 100 million RMB
and the annual production of transmission pole comes to 20 thousand ton per year.The annual
production of steel structure comes to 10 ton and street pole of 30 thousand sets .
110KV multisided electrical power pole for over headline project
