| Type | Straight Pole ,Tensile Pole ,Turn Pole |
| Suit for | Electricity distribution |
| Shape | Conoid ,Multi-pyramidal , Columniform,polygonal or conical |
| Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 , SS400, SS490, to ST52- |
| Tolerance of dimension | +- 2% |
| Power | 10 KV ~550 KV |
| Safety Factor | Safety factor for conducting wine : 8 Safety factor for grounding wine : 8 |
| Design Load in Kg | 300~ 1000 Kg applied to 50cm from the top pole |
| Marks | Nane plate through rivert or glue ,engrave ,emboss as per customer requirement |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
| Joint of Poles | Insert mode,innerflange mode,face to face joint mode . |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour . 30 m /s |
| Minimum yield strength | 355 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Length of per section | Within 14m once forming without slip joint |
| Welding | We have past flaw testing. Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 |
| Thickness | 1 mm to 30 mm |
| Production Process | Raw material test → Cutting →Molding or bending →Welding (longitudinal ) →Dimension verify →Flange welding →Hole drilling →Calibration → Deburr →Galvanization or powder coating ,painting →Recalibration →Thread → Packages |
| Packages | Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
Material Test:
1. All of our material are purchased from famous mill factory to assure the quality
2. A mill certificate issued by the mill factory with stamp and signature must be provided before unload the
material in our factory; otherwise we have our reason to refuse the material.
3. Before put into production, all the material must pass the chemical and physical analysis to make sure that they
have met the requested strength and component.

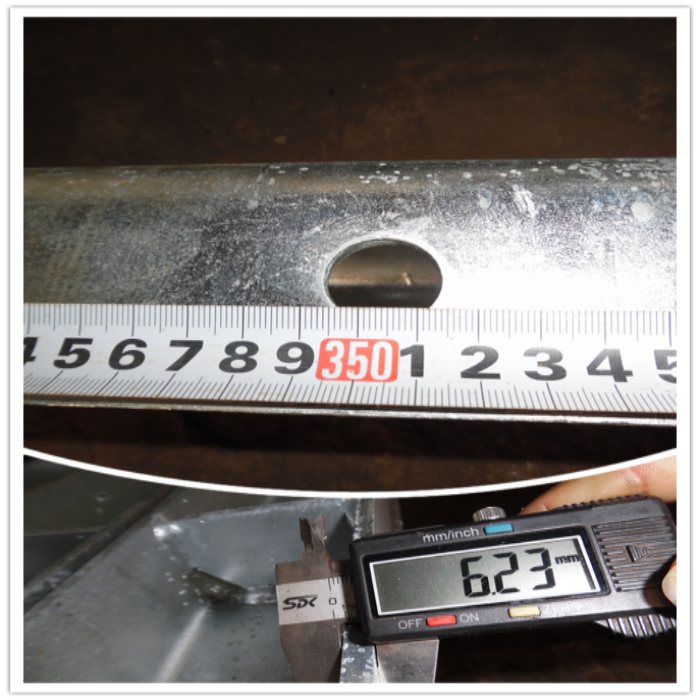

Inspection:
Before shipment, we have a final inspector manager to check the products on every detail and component to
make sure it all meet the drawing.

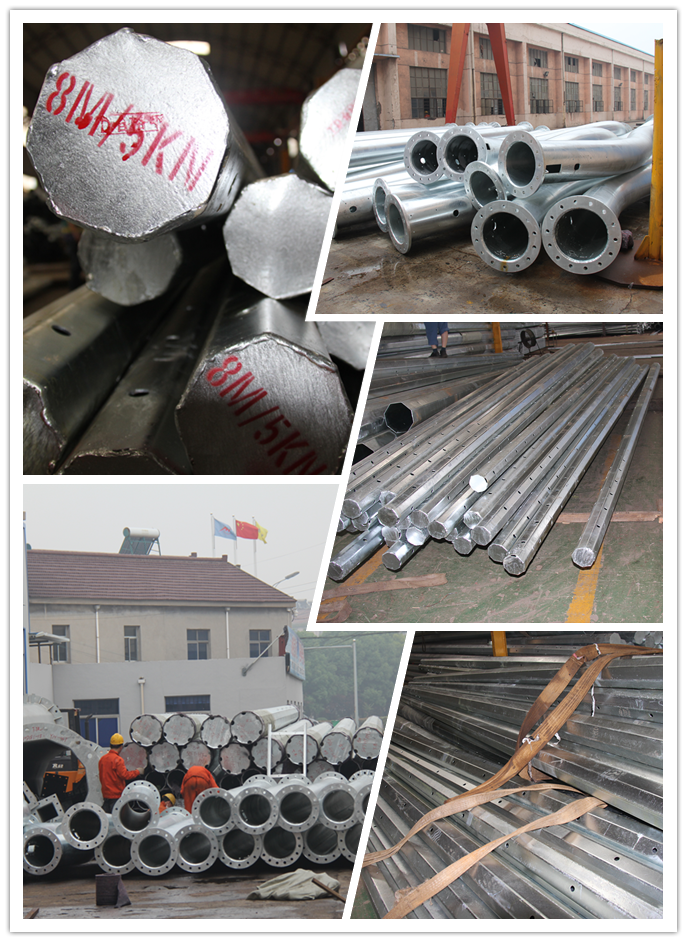

Package and shipment:
Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole ,anyway also can following by client required , The loading capacity of 40HC or OT an be calulated calculation base on the client actually specification and data.
Company Introduction:
Jiangsu Milky Way Steel Poles Co.,Ltd .was founded in 1991 is a cooperative shares system corp. The company
covers an area of 150,000 square meter .It is now centralizing in pole design, ,research, production ,and
installation. After twenty years of development , the company owns Hot Spray Coating Zinc Branch Factory ,Anhui
Steel Branch ,MilkyWay Lighting Installation Engineering Company. The total asset of the
company amount to 100 million RMB and the annual production of transmission pole comes to 20 thousand ton
per year . The annual production of steel structure comes to 10 ton and street pole of 30 thousand sets .
