High Voltage 1000kV Galvanized Steel Tubular Pole Telecommunication Tower

Name: High Voltage 1000kV Galvanized Steel Tubular Pole Telecommunication Tower
Brand: MilkyWay
Price: 1 USD

High Voltage 1000kV Galvanized Steel Tubular Pole Telecommunication Tower Manufactures

Brand Name : MilkyWay

Model Number : Steel Tubular Pole

Certification : ISO9001/BV/

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : T/T, L/C at sight

Supply Ability : 300pcs per day

Delivery Time : 20 working days after received your payment

Packaging Details : As customer request

Product Name : Steel Tubular Pole

Welding standard : AWSD 1.1

Material : Q345

Wall thickness : 3mm

Warranty : 15 years

Life time : 50 years

Contact Now

1000kV high voltage galvanized steel tubular poletelecommunication tower

Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.

Manufacture Tolerance
-Component Length:-25mm to 75mm
-Straightness:2mm/m
-Twisting degree:1°per 3 meters length
-Ovalisation:Maximum is 3%
-The average diameter:+/-0.5%
-Slip length:+/-150mm

Specification:

Suit for	Electricity distribution
Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-
Torlance of the dimenstion	+- 2%
Power	10 KV ~550 KV
Safety Factor	Safety factor for conducting wine : 8 Safety factor for grounding wine : 8
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Marks	Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required
Joint of Poles	Insert mode,innerflange mode,face to face joint mode
Design of pole	Against earthquake of 8 grade
Wind Speed	160 Km/Hour . 30 m /s
Minimum yield strength	355 mpa
Minimum ultimate tensile strength	490 mpa
Max ultimate tensile strength	620 mpa
Standard	ISO 9001
Length of per section	Within 14m once forming without slip joint
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness	1 mm to 30 mm

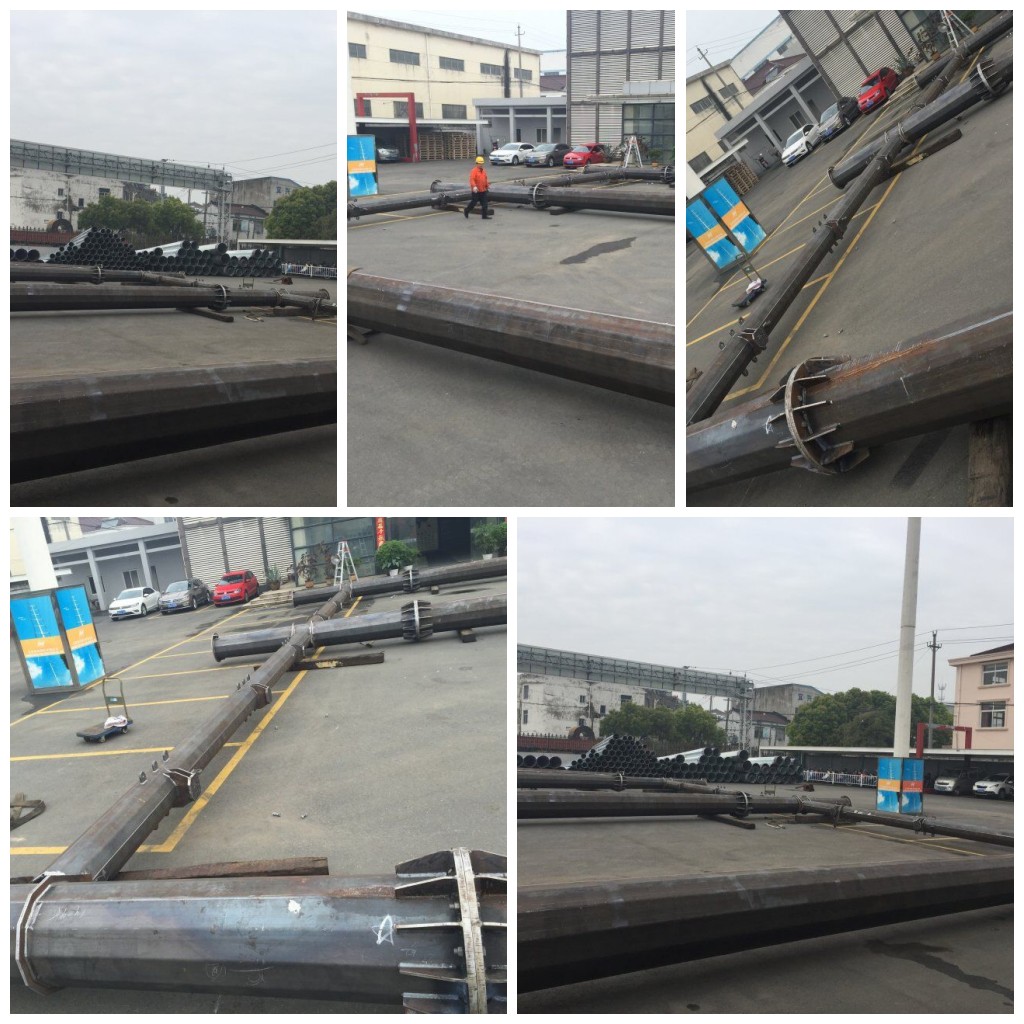

Welding
We have past flaw testing. Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

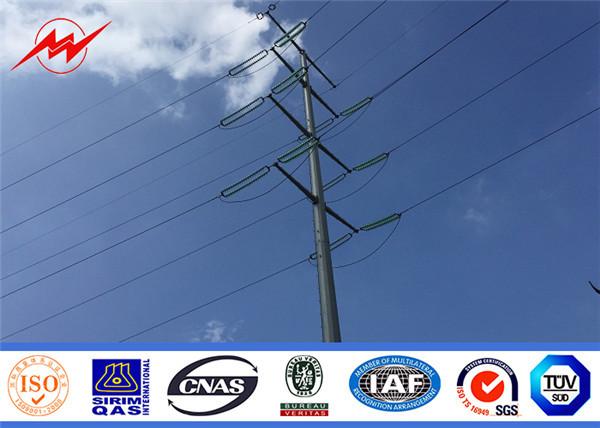

High Voltage 1000kV Galvanized Steel Tubular Pole Telecommunication Tower

Surface Treatment
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.

Quality Control
We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production to ensure the product compliance to the specification/standards. Careful inspections are carried out by highly trained inspection engineers during every procedure from raw material stage to finished product and delivery.

More Projects--Ghana Electricity Company visit on site

High Voltage 1000kV Galvanized Steel Tubular Pole Telecommunication Tower
